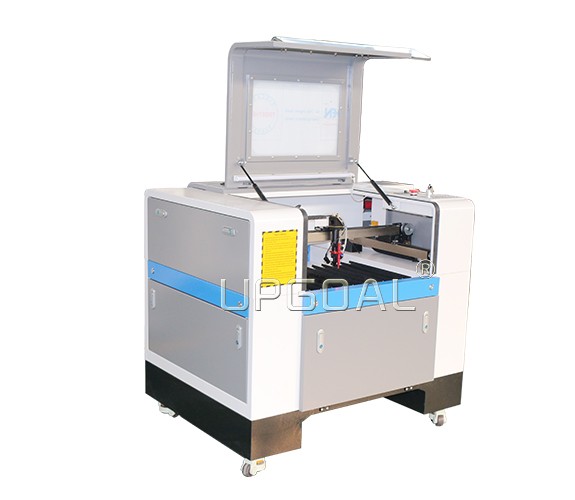

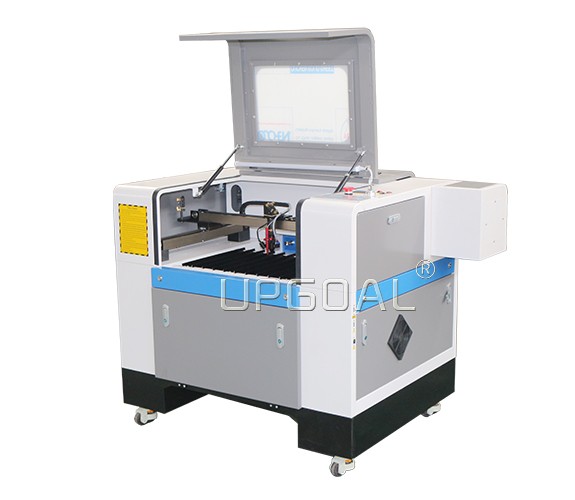

Small 600*400mm Modular Structure Co2 Laser Engraving Cutting Machine 75W
Brief Introduction:
Model: UG-6040L
600*400mm working area
Reci W1 75W Co2 laser tube
Module structure, low nose, fast speed
RDC6445s controller
Applications
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc.
Materials can Work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Features

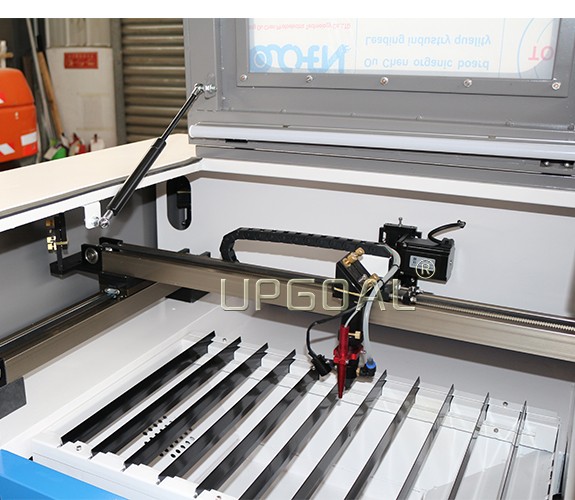

Motion System
Advanced modular structure, self-lubricating cleaning system, the coefficient of friction is low when the linear module reciprocates, achieving a silent effect. Light weight, low inertia, stable operation, fast response to acceleration and deceleration, and achieve the effect of noise reduction. Long service life, high rigidity material, guarantee high straightness, zero clearance run-in between the slider and guide rail of the linear module, guarantee its long service life.

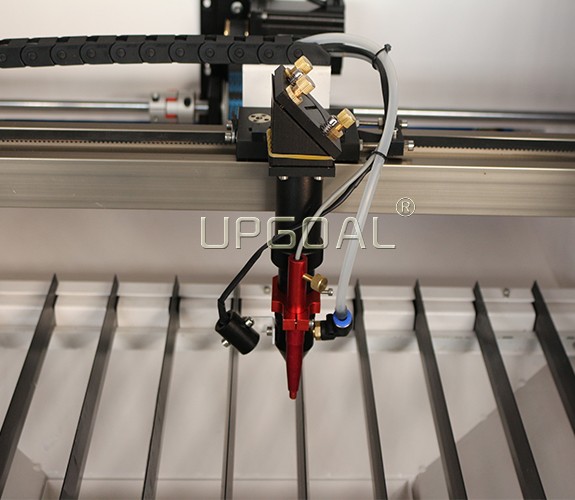

Laser Head with pen type auto focusing sensor & infrared pointer
Newly design, More in according with mechanical engineering. Safe and durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Laser Tube
Adopted high quality Reci W1 75W Co2 laser tube, long working time time and stable
Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

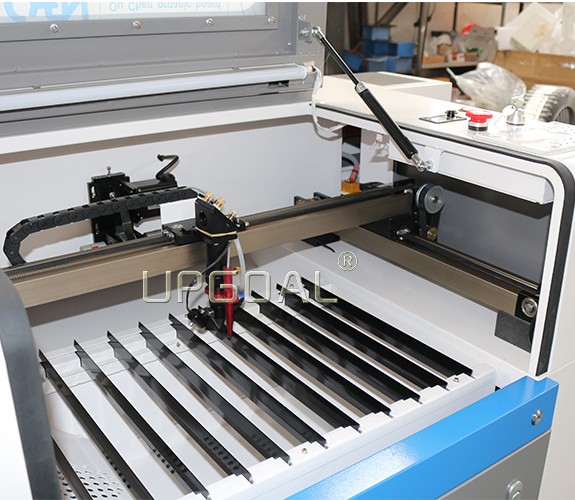

Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Auto Lifting Table for more thickness materials：Maximum Loading 50kgs with 200mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Operation System
Advanced USB port RuiDa RDC6445S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5000(Teyu S&A), ensuring the laser tube long time continuous working.
Effective working area | 600*400mm |
Laser Type | Co2 sealed-off laser tube |
Laser tube power | 75W, Reci brand, W1 model |
Working table | Honey comb & knife strip, double working table |
Lifting table | Automatic up and down, 200mm |
Driver mode | 3 phases stepper motor and Driver, Yako brand |
Structure | Modular structure |
Control panel | English |
Laser output control | 1-100% software setting |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/min |
Control system | Ruida RDC6445S |
Control software | RDWorks V8 |
Design software when delivery | CorelDraw |
Control panel | DSP offline |
Resolution accuracy | < 0.01mm |
Location precision | < 0.01mm |
Highest scanning accuracy | 2500DPI |
Type of cooling | Industrial chiller CW-5000 cooling(Teyu S&A) |
Water protection system | Yes |
Focus | Auto focus， pen type red pointer |
Blow-off system | Air pump and air blower |
Biggest scanning accuracy | 2500DPI |
Working temperature | 0-45 °C |
Operating humidity | 5-95% (without condensed water) |
Supporting picture format | PLT、DST、DXF、BMP, DWG、AI、LAS,etc |
Voltage | AC 220V/110V, 50/60Hz, single phase |
Certificate | CE/FDA |
